Product Description

  • When rodents / pests occur in existing homes and commercial buildings, it is always needed to enter the roof and ceiling for feeding.
  • This product is a new type of bait station that can be quickly installed in a closed environment of rats and other harmful organisms growth and reproduction places, providing safe and convenient solution for the
    pest control industry.
  • This product can be installed in the ceiling, walls, roofs, eaves, floor cracks and other appropriate places.

Product Introduction

Traditional Pest Control Methods

  • The bait station is usually placed only at the damaged hole after infestation, rather than scattered on the
    roof or ceiling.
  • Casually throw the paper parcel containing the bait in the ceiling or roof.
  • Climb to the roof or ceiling space to place the bait.
  • Repeated climb to the roof or ceiling to observer in the absence of identification of pests problem solved.
  • In practical cases, feeding the bait within the roof requires removal of part of the structure of the upper roof (such as tiles, sheet metal, etc.)

Occupational Risks of Climbing

  • In addition to falling from a height, especially the ladder, there is a number of viral and hemorrhagic fever and other diseases will posed a certain threat to the staff entering the confined environment. The employer should be responsible for these issues, whether in training / inspecting equipment or in the workplace.

The Risk of Roof Space Operations

  • Roof space is mostly closed, shimmer and very hot and sometimes there will be a wire. The individual
    roof skeleton may be very slippery and sharp, which will cause different degrees risks to workers in
    the operation of feeding the bait.
  • There are dust, dirt, insects and various types of dangerous bacteria in the roof space.
  • There are dust, dirt, insects and various types of dangerous bacteria in the roof space.
  • People have to face such situation when conducting inspections and adding bait.

Initial Installation Process

The process of opening hole by handsaw, installing bracket and feeding bait.

Products installed in the ceiling, walls, cabinets, roofs and other


  • Check and Replace: rapid installation and replacement, 95% reduction in cost.
  • No ladder: check and replace the bait system safely from the ground.
  • Gel products, liquid baits, and pellet decoys may be used together with the product.
  • Significantly reducing the construction risk of technical personnel and the responsibility of company.
  • Reduce the potential threat, such as poisonous spiders, snakes and scorpions.
  • Completely isolated from children and pets.
  • Safer lure to avoid accidental poisoning.

Where to Use

Can be applied in homes, resorts, apartments, businesses, factories, schools, shopping malls and other suitable places.

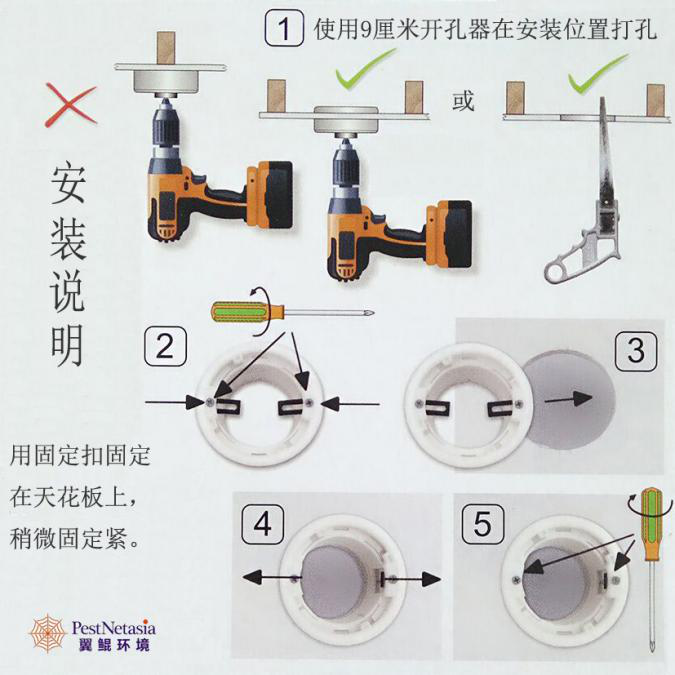

Initial Installation Illustration

1.Use the 9 cm cutters to punch holes in the mounting position as shown in the illustration. Note: Avoid
cross-beam, steel and other solid objects when drilling. Avoid baiting rods can not be placed.

2.Loosen the screws. Retract the black retaining clips at both ends of the bracket into the bracket and
insert the white sealing rubber ring into the bracket.

3.Install the bracket into a 9 cm hole.

4.Slide the black retaining clips with your finger so that the bottom of the retaining clip and the bait
cartridge bracket is locked against the panel.

5.Use a screwdriver to tighten the screws to secure the bracket.

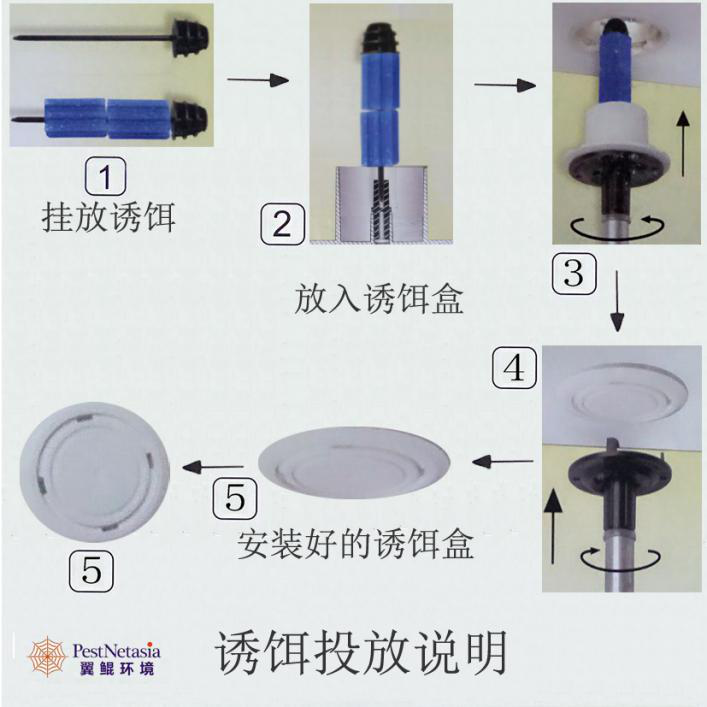

Bait Replacement Instructions

1.Hang the lump bait above the bait rod.

2.Add bait rod, lump bait, pellet bait, liquid bait and other baits into the bait box.

3.Insert the key into the bait box and rotate it clockwise to mount the bait box on the bracket.

4.Turn the key counterclockwise after the installation is complete.

5.As shown, the finished bait box is ready to use.
